【產品名稱】快速啟動曬版碘鎵燈

【產品型號】JYP

【關鍵字】強紫外光源,近紫外光源 ,印刷曬版燈,電路版曬版燈,

【產品類別】UV固化燈

【技術原理】金屬鹵化物放電燈

【產品特點】

1.超強320-450nM強紫外和近紫外光源,輻射強；

2.品質保障，光譜穩定、照度均勻；

3.燈管壽命長、曬版時間短；

【應用范圍】印刷曬版、印刷平印、凸印、PS版曬版、標牌和印刷電路版曬版

【綜合介紹】

碘鎵燈是產生強烈的320-450nM紫外和近紫外光的金屬鹵化物放電燈，專為光化學工藝而設計制造的強紫外和近紫外光源，適用于印刷平印、凸印、PS版曬版用，標牌和印刷電路版曬版用，該系列燈工作時光譜穩定、照度均勻、壽命長、曬版時間短等優點。

【使用說明】

1．切勿用手接觸燈管，燈管上沾染上手漬、油污、灰塵會使石英管失透，影響光輸出。如果燈管已污染，可用無水酒精潤濕棉球擦凈。

2．燈必須與相應型號的電源設備（包括觸發電路、鎮流器、脈沖燈還包括脈沖電路）匹配使用。

3．燈應牢固安裝在具有一定風冷條件的燈具中工作，燈頭和引線的電接觸應良好，否則可能因大電流產生焦耳熱而縮短燈泡壽命。

4．燈使用時電源電壓變化不應超過±10%。

5．燈點燃后會產生一定的紫外線輻射，切勿直視和近曬，以免灼傷眼球和皮膚。

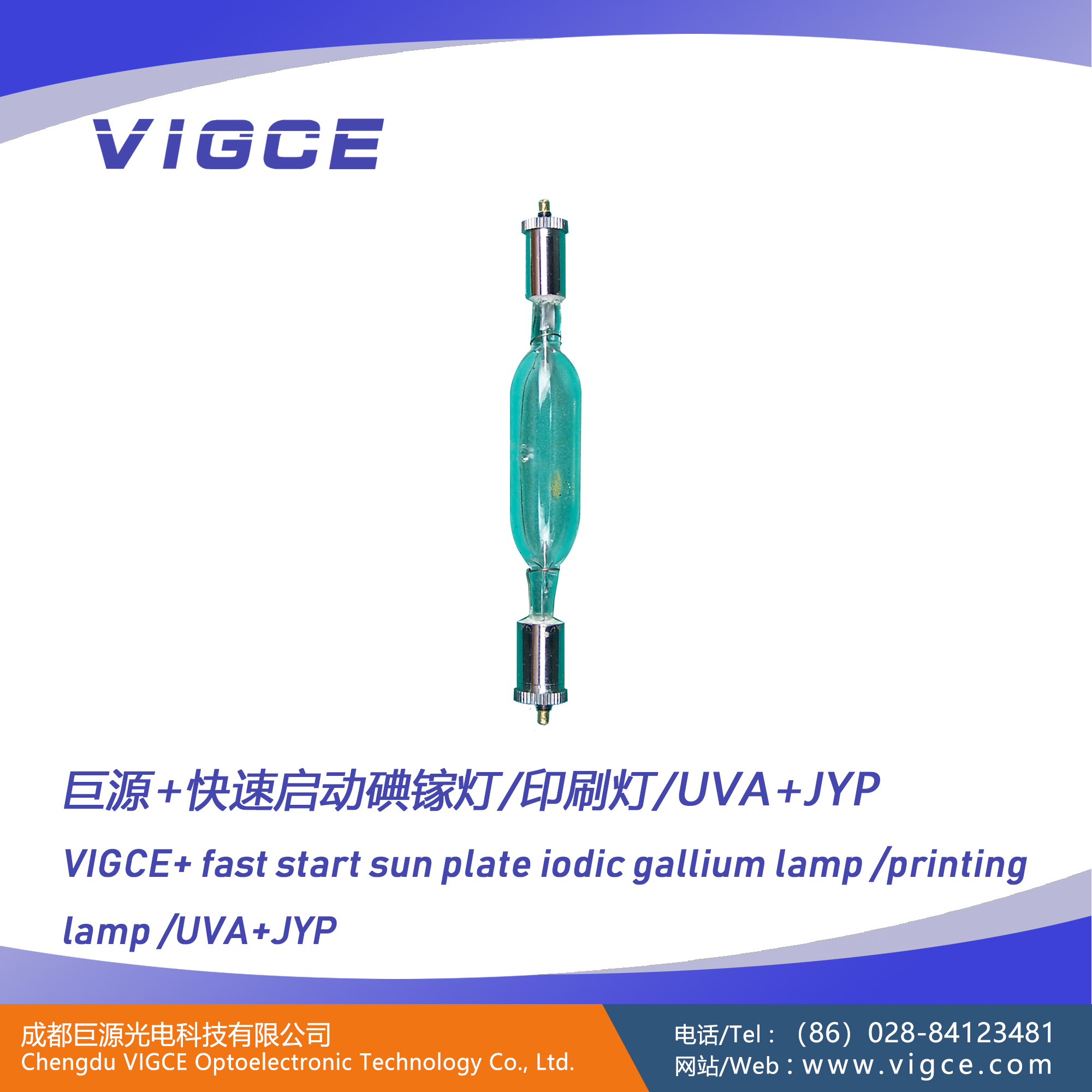

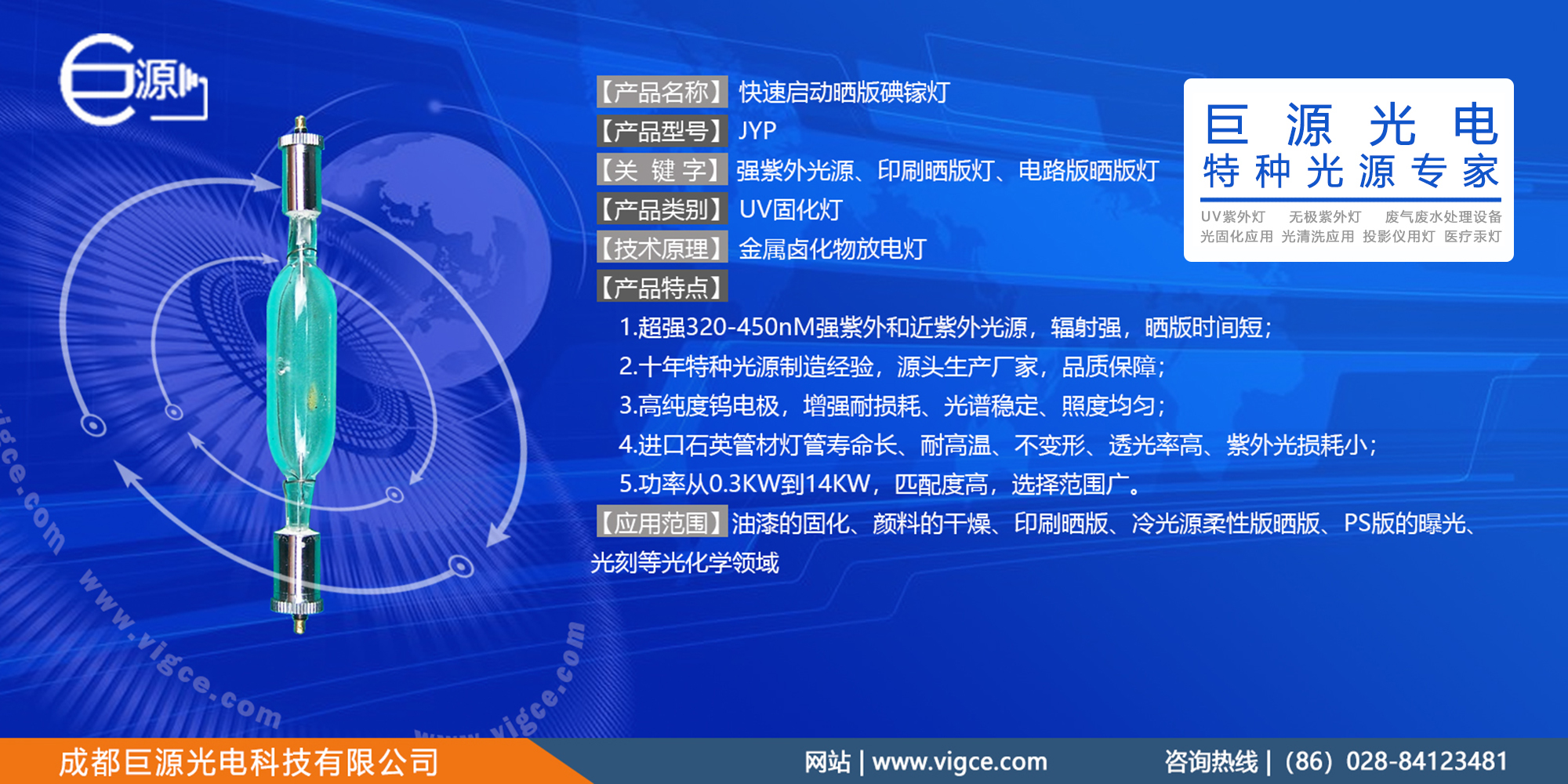

【產品照片】

【視頻資料】

【規格參數】

Fast start sun plate iodic gallium lamp
[product model] JYP
[key] strong ultraviolet light source, near ultraviolet light source, printing plate lamp, circuit plate lamp,
UV curing lamp [product category]
Metal halide discharge lamp
[product characteristics]
1. ultra strong 320-450nM strong ultraviolet and near ultraviolet light source, the radiation is strong.
2. quality guarantee, the spectrum is stable, the illumination is uniform.
3. lamp life is long and the time of sun - sun is short.
(application range) printing and sun printing, printing flat print, convex, PS edition, sign and printed circuit Edition
[comprehensive introduction]
Iodine gallium lamp is 320-450nM strong ultraviolet and near ultraviolet light metal halide discharge lamp, light source for the photochemical process and the design and manufacture of strong ultraviolet and near ultraviolet, suitable for flat printing, embossing, PS print, signage and printed circuit board for printing, the advantage of the series lamp work time spectral stability, uniform illumination, long service life, short exposure time etc..
[instructions]
1. do not use hand contact light pipe, light tube stained with hand stains, oil pollution, dust will cause the loss of quartz tube, affect the output of light. If the lamp has been polluted, the cotton ball can be wetted with anhydrous alcohol.
The 2. lamp must be used with the corresponding type of power supply, including the trigger circuit, the ballast, the pulse lamp and the pulse circuit.
The 3. lamp should be firmly installed in the luminaire with certain air cooling conditions. The electrical contact between the lamp holder and the lead wire should be good, otherwise the Joule heat will be generated due to the high current and shorten the life of the bulb.
The change of the power supply voltage should not exceed + 10% when the 4. lamp is used.
5. lights will produce a certain amount of ultraviolet radiation, do not look directly and close to the sun, so as not to burn the eyeball and skin.
[product photo]
[video data]
[specification parameter]
