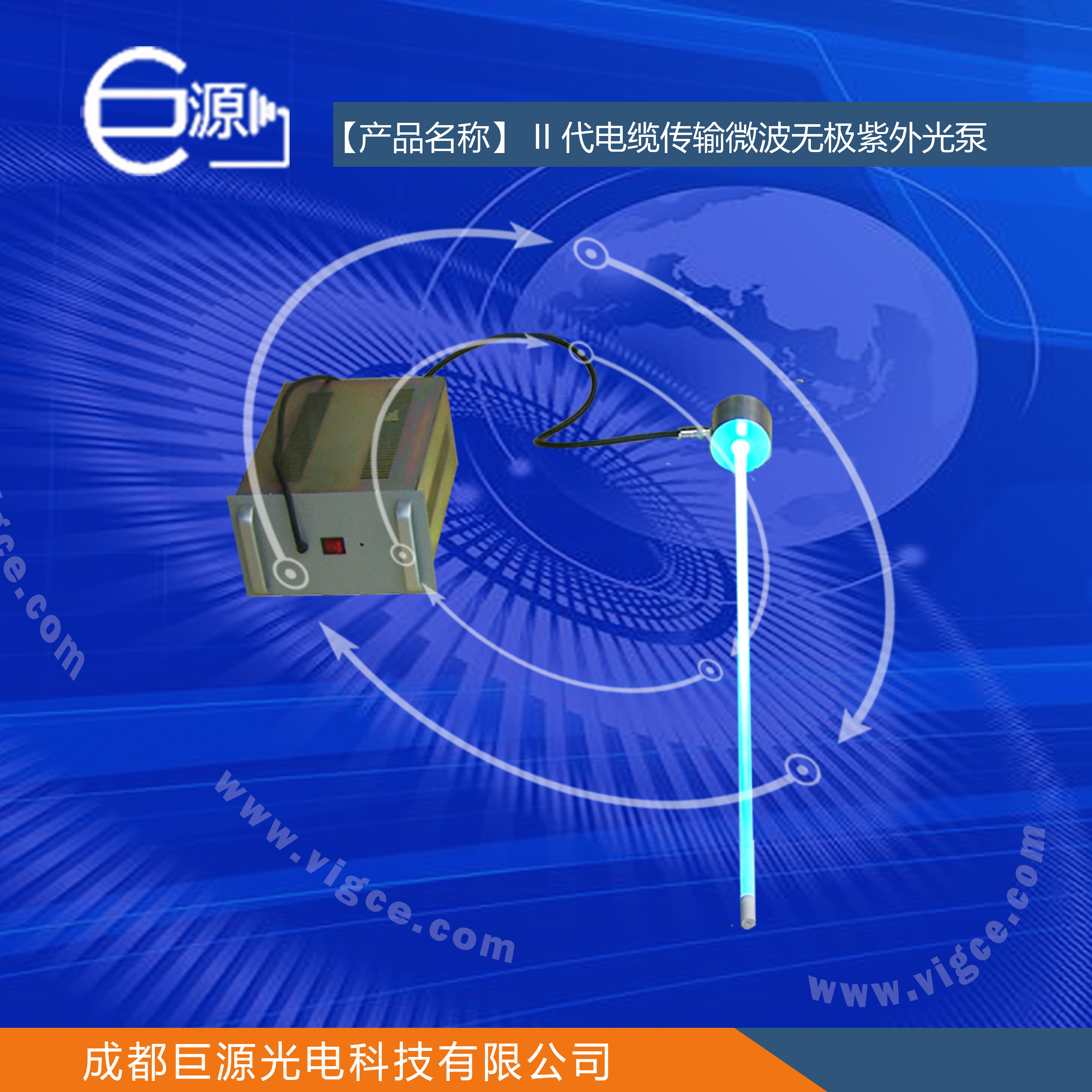

【產品名稱】II代電纜傳輸微波無極紫外光泵
【產品型號】JYM
【關 鍵 字】電纜傳輸、微波無極紫外光泵、UV光解、光解VOCS
【產品類別】UV光泵
【技術原理】微波無極紫外燈系統
微波、紫外線、臭氧三位一體的廢氣、廢水處理新方式
微波：可使細胞中極性物質隨高頻微波場的震動受到干擾和阻礙, 引起微生物細胞的蛋白質、核酸等生物大分子受熱凝固或變性失活, 從而導致其突變或死亡。
紫外線：253.7nm紫外線通過照射微生物的DNA，使其發生光化學反應，從而變性失活，是目前公認的最佳消毒光譜線。
臭氧( O3 )：微波激發的185nm射線與空氣中的氧氣反應生成的臭氧具有強氧化作用，是已知的最強氧化劑。對從烴到羧酸的種類眾多有機物都可分解，可有效地殺滅各種細菌病菌，臭氧的彌散性可彌補由于紫外線只沿直線傳播、消毒有死角的缺點。
【產品特點】
1. 不存在電極老化問題, 燈管的壽命可長達十幾年;
2. 發光譜線主要為253.7nm、185nm，是傳統紫外燈效率的20多倍；
3. 可瞬時啟動和再啟動, 光輸出穩定；
4. 燈管的長度任意，可滿足窄小場合使用，如各種場合的新風系統等；
5. 燈管的更換維修次數少, 適用于維修困難的場合；
6. 燈管以及電源產生的熱量極低，適用于處理易燃、易爆炸的氣體、液體；
7. 電源和燈管之間采用電纜連接，處理方式更加安全、方便、快捷；
8. 可大量應用于光催化、氧化污染治理，廢水廢氣油煙治理，材料表面改性，干蝕刻，膜沉積，合成有機物，制備超純水等方面。
【應用范圍】光催化、光氧化、污染治理、新風系統、印刷、廢水廢氣處理、油煙處理、材料表面改性、干蝕刻、膜沉積、合成有機物、制備超純水、易燃、易爆氣體液體處理、除臭除異味、消毒滅菌
【綜合介紹】
微波無極紫外燈系統，主要發出253.7nm/185nm紫外光譜，應用于光催化、氧化污染治理、新風系統，廢水廢氣油煙治理，材料表面改性，干蝕刻，膜沉積，合成有機物，制備超純水。產熱低，適宜于處理易燃、易爆的氣體液體。
【使用說明】
【產品照片】
【視頻資料】
【同系產品】
【規格參數】
|
燈管長度
|
燈管直徑
|
加載功率
|
253.7nm功率
|
臭氧產生量
|
富余微波功率
|
|
300mm
|
17mm
|
>400W
|
145W
|
11.21g
|
<200W
|
|
400mm
|
160W
|
13.65g
|
<180W
|
|
600mm
|
180W
|
13.65g
|
<140W
|
|
800mm
|
220W
|
26g
|
<80W
|
|
1200mm
|
280W
|
32.15g
|
<60W
|
|
1500mm
|
300W
|
39.12g
|
<10W
|

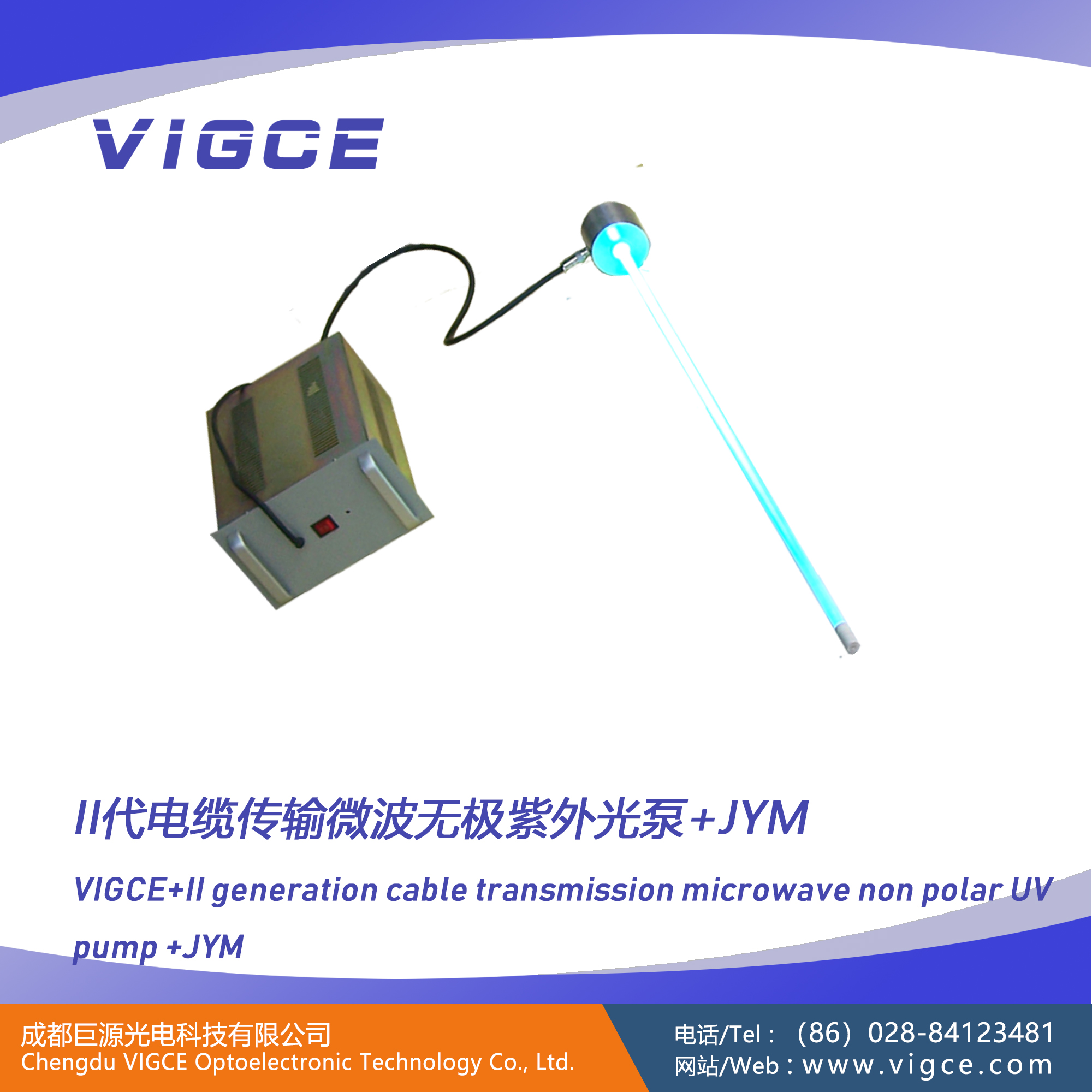

[product name] II generation cable transmission microwave non polar ultraviolet light pump
[product model] JYM
[Keywords] cable transmission, microwave non polar ultraviolet light pump, UV photolysis, photolysis VOCS
[product category] UV optical pump
Microwave non polar ultraviolet lamp system
A new method for treatment of waste gas and waste water from microwave, ultraviolet and ozone
Microwave: the polar materials in the cell can be interfered and obstructed by the vibration of the high-frequency microwave field, causing the biological macromolecules such as proteins and nucleic acids in the microbial cells to undergo heat coagulation or denaturation, resulting in mutation or death.
Ultraviolet: 253.7nm ultraviolet is the best disinfection spectral line recognized by photochemical reaction and deactivation of DNA by irradiating the microorganism's ultraviolet.
Ozone (O3): the ozone generated by microwave excited 185nm rays and the oxygen in the air has a strong oxidation effect, which is the strongest oxidant known. From hydrocarbon to carboxylic acid, many organic substances can be decomposed, which can effectively kill all kinds of bacterial pathogens. The dispersion of ozone can make up for the shortcoming of ultraviolet rays spreading along the straight line and sterilizing dead ends.
[product characteristics]
1. there is no problem of electrode aging, and the life span of the lamp can be over ten years.
The 2. luminescent line is mainly 253.7nm and 185nm, which is more than 20 times the efficiency of the traditional ultraviolet lamp.
3. can start and restart instantaneously, and the output of light is stable.
4. the length of the lamp tube is arbitrary, which can satisfy the use of narrow and small occasions, such as the new wind system of various occasions.
The number of replacement and maintenance of the 5. lamp tube is less, which is suitable for the situation of difficult maintenance.
6. the light pipe and the energy produced by the power supply are very low. It is suitable for dealing with flammable and explosive gases and liquids.
7. the cable is connected between the power supply and the lamp tube, and the processing method is more safe, convenient and quick.
8., it can be widely applied in photocatalysis, oxidation pollution control, waste gas and exhaust fume treatment, surface modification of materials, dry etching, film deposition, synthesis of organic matters, and preparation of ultra pure water.
[application] photocatalysis and oxidation, pollution control, air system, printing, waste gas treatment, fume treatment, surface modification, dry etching and film deposition, organic synthesis, preparation of ultra pure water, flammable and explosive gas liquid treatment, deodorizing and sterilization
[comprehensive introduction]
Microwave electrodeless ultraviolet lamp system mainly emits 253.7nm/185nm ultraviolet spectrum. It is applied to photocatalysis, oxidation pollution treatment, fresh air system, waste gas and exhaust fume treatment, material surface modification, dry etching, film deposition, and synthesis of organic matter, and preparation of ultra pure water. Low heat production, suitable for handling flammable, explosive gas liquid.
[instructions]
[product photo]
[video data]
[homologous products]
[specification parameter]
∷
