XL氙燈

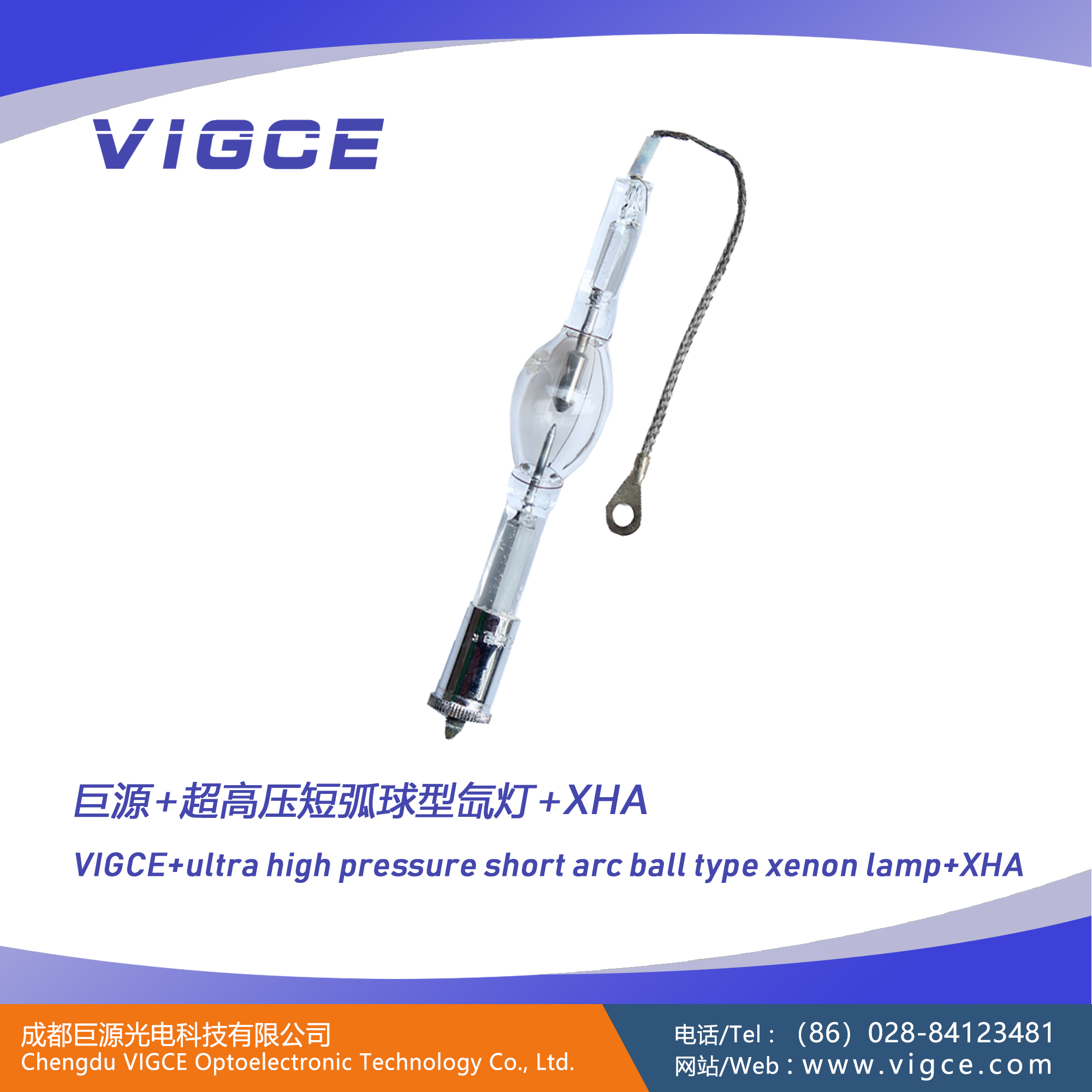

巨源+超高壓短弧球型氙燈+XHA

點光源
亮度高
標準白色光源
模擬日光
產品描述：球型超高壓短弧氙燈是具有高亮度的點光源，廣譜寬且連續，從紫外到近紅外線，亮度高，發光體體積小，顯色性好，適用于電影放映拍攝，電視片的照明，探照燈、舞臺照明、醫療光源等，并和作為光學儀器、紅外線探測技術以及模擬日光等方面的光源和標準白色光源。
在線訂購

巨源+超高壓短弧球型<a href=http://www.zhao52.com/index.php/list/index/g/c/id/54.html target='_blank'>氙燈</a>+XHA

【產品名稱】超高壓短弧球型氙燈

【產品型號】XHA

【關 鍵字】球型氙燈,舞臺照明燈,點光源,電影放映等,模擬日光,標準白光源

【產品類別】激光光源

【技術原理】球型氙氣燈

【產品特點】

1.氙燈是利用氙氣放電發光的氣體放電燈,放電強度大；

2.具有亮度高,發光體體積小的優點；

3.光譜能量分布接近于太陽光,是最接近日光色的人造光源；

4.近似日光色5500K-6000K，高顯色指數＞95;

5.燈的壽命長，顏色保持不變，可利用功率在50-10000W。

6.顯色性好，作為標準白色光源的最佳選擇，特別是適用于電影放映；

【應用范圍】電影放映拍攝，電視片的照明，探照燈、舞臺照明、醫療光源等，并和作為光學儀器、紅外線探測技術以及模擬日光等方面的光源和標準白色光源

【綜合介紹】

球型超高壓短弧氙燈是具有很高亮度的點光源,能輻射出從紫外到近紅外線的強烈連續光譜的光,具有亮度高,發光體體積小，顯色性好等優點,特別適用于電影放映，以及拍攝電影、電視片的照明，探照燈、舞臺照明、醫療光源等,并和作為光學儀器、紅外線探測技術以及模擬日光等方面的光源和標準白色光源。

氙燈是利用氙氣放電發光的氣體放電燈,燈的光譜能量分布接近于太陽光,是最接近日光色的人造光源。近似日光色5500K-6000K，高顯色指數＞95，燈的壽命中，顏色保持不變，可利用功率在50-10000W。

管形長弧氙燈和作為碼頭、廣場、體育場的大面積照明光源，還可作為印刷照相制版，布匹煙絲檢驗，塑料、橡膠藥物的老化試驗，人工氣候室植物栽培，以及光化學反映光源等。

巨源光電作為氙燈的精深研發生產企業，擁有多項自主開發成果。公司總工為《《超高壓球型氙燈國家標準》（GB 15041）的起草人之一，在氙燈生產制造領域處于國內權威位置。

【使用說明】

【產品照片】

【視頻資料】

【同系產品】

【規格參數】

超高壓短弧球型氙燈

[product name] ultra high pressure short arc ball type xenon lamp
[product model] XHA
[key] the ball type xenon lamp, the stage light, the point light, the film projection, and so on, the simulated sunlight, the standard Bai Guangyuan
Laser light source
[technical principle] a spheroidal xenon lamp
[product characteristics]
The 1. xenon lamp is a gas discharge lamp which uses xenon discharge to glow, and the discharge intensity is great.
The 2. has the advantages of high brightness and small volume of the luminescent body.
3. the spectral energy distribution is close to the sun light, which is the closest sunlight to the artificial light.
4. similar to solar color 5500K-6000K, high color index more than 95;
The 5. lamp has a long life, the color is kept constant, and the power can be used in 50-10000W.
6. good color display, as the best choice of standard white light source, especially for film screening.
[application] movie projection, shooting, TV lighting, searchlight, stage lighting, medical light source, and light sources and standard white light sources as optical instruments, infrared detection technology and simulated sunlight.
[comprehensive introduction]
The ball type ultra high pressure xenon short arc lamp is of high brightness point light sources can radiate from the ultraviolet to the near infrared spectrum of continuous strong light, light with high brightness, small volume, good color and other significant advantages, especially suitable for film screenings, film, television and lighting, searchlight the stage lighting, light source, medical, light source and standard white light source and as optical instrument, infrared detection technology and solar simulator etc..
Xenon lamp is a gas discharge lamp that uses xenon discharge to glow. The spectral energy distribution of the lamp is close to the sun light. It is the closest artificial light source to the sun color. Similar to solar color 5500K-6000K, high color index more than 95, the life of the lamp, the color remains the same, can be used in the power of 50-10000W.
The ball type ultra high pressure xenon short arc lamp is of high brightness point light sources can radiate from the ultraviolet to the near infrared spectrum of continuous strong light, light with high brightness, small volume, good color and other significant advantages, especially suitable for film screenings, film, television and lighting, searchlight the stage lighting, light source, medical, light source and standard white light source and as optical instrument, infrared detection technology and solar simulator etc..
Tubular long arc xenon lamp and large area lighting source used as wharf, square and stadium can also be used as printing and phototypesetting, cloth and tobacco inspection, plastic and rubber aging test, artificial climate chamber plant cultivation, and photochemistry reflecting light source.
Giant source optoelectronic, as the deep research and development and production enterprise of xenon lamp, has a number of independent development results. Company chief engineer for "" ultra high pressure ball xenon lamp national standard "(GB 15041) is one of the drafters, in the domestic authoritative position in the field of manufacturing of xenon lamp.
[instructions]
[product photo]
[video data]
[homologous products]
[specification parameter]

國際型號 Lamp Type	額定功率 Watts W	電源電壓 Supply Voltage V	工作電壓 Operating Voltage V	工作電流 Current A	光通量Lumens lm/W	工作位置 (\| -)	全長 Overall Length mm	直徑 Diameter mm	壽命 Average Life h
XHA35	35	50	11±2	3	0.25	垂直100	85	10	250
XHA75	75	50	14	5.4	0.95	垂直100	90	14	400
XHA150A	150	65	17.5	8.5	2.9	垂直15水平15	150	20	1200
XHA150B	150	65	20	7.5	2.9	垂直15水平15	150	20	1200
XHA350	350	60	22±2	16	12	垂直15水平15	133	23	600
XHA400	400	60	19±2	21	12	垂直30水平30	150(122)	27	1000
XHA450	450	70	18	25	13	垂直 30	260	31	2000
XHA500	500	80	18	28	14.5	垂直30水平30	190	35	2000
XHA750A	750	65	23±2	33	26	垂直20水平20	200	36	1000
XHA750B	750	65	21±2	36	24	垂直20水平20	136	36	500
XHA900	900	70	20	45	30	垂直30	325	40	2000
XHA1000A	1000	80	22	45	35	垂直30水平30	330	48	1500
XHA1000B	1000	75	20	50	32	垂直20水平20	235	40	1500
XHA1000C	1000	75	20	50	32	垂直20水平20	236	40	1500
XHA1500	1500	75	25±2	60	54	垂直30水平20	320	48	1500
XHA1600A	1600	75	25	65	60	垂直30	370	53	2000
XHA1600B	1600	75	22	65	60	垂直20水平30	235	47	1500
XHA1600C	1600	75	22	65	60	垂直20水平30	236	47	1500
XHA2000A	2000	110	29	70	80	垂直30水平30	375	62	1500
XHA2000B	2000	110	29	70	80	垂直30水平30	375	62	1500
XHA2500A	2500	85	30	83	100	垂直30	428	60	1500
XHA2500B	2500	90	28	90	100	垂直30水平20	342	60	1500
XHA3000A	3000	110	30	100	130	垂直30水平20	405	66	1500
XHA3000B	3000	110	30	100	130	垂直30水平30	428	66	1500
XHA4000	4000	110	30	135	155	垂直20水平20	410	70	800
XHA5000	5000	110	34±2	145	200	垂直15水平20	425(440)	71(66)	800
