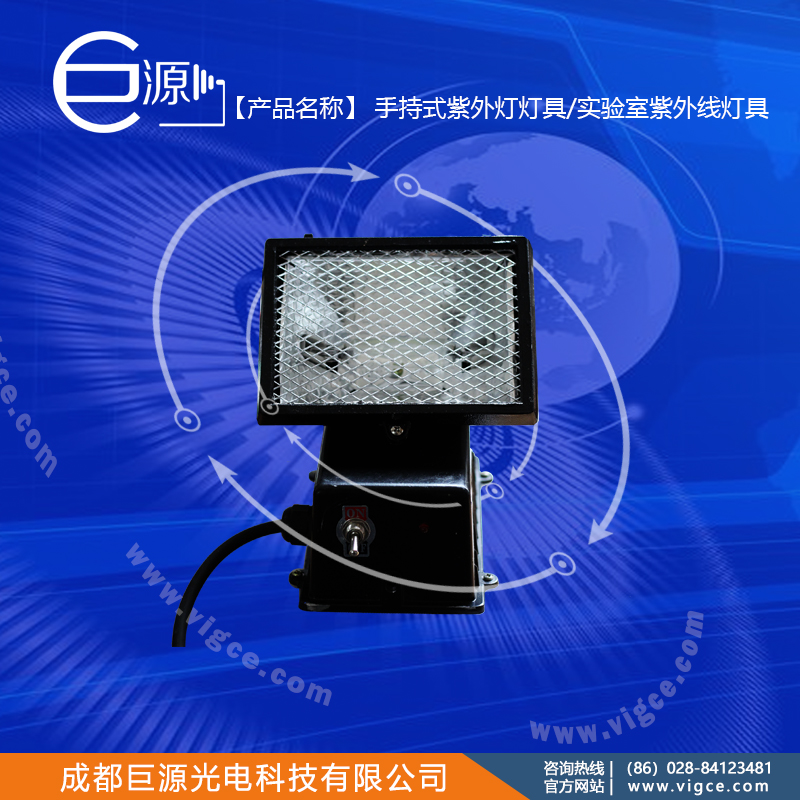

【產品名稱】手持式紫外燈燈具/實驗室紫外線燈具

【產品型號】JYPDJ500

【產品小類】可替換光源燈具。可替換類型：500WUV燈、500W碘鎵燈、250W鐵燈

【產品類別】固化燈燈具/實驗室燈具

【關鍵字】UV光固化、365nm 、420nm紫外線、中長波紫外線

【技術原理】高強度氣體放電燈

【產品特點】

1．高強度氣體放電燈，強紫外線輸出、固化速度快；

2．選用進口石英玻璃管制成，紫外線透過率極強；

3．高漏磁感應變壓器加起啟動，光譜能量分布以365nm/420nm為中心，有效范圍350nm-450nm；具有極高的功率密度和有效的紫外線波段；

4．強紫外線高壓燈輻射，瞬時表面固化；

5．瞬時固化、省時省電、節約空間和無污染等特點；

6．手持式設計，小巧方便，可以應用于狹窄場合；

7．燈頭分為金屬和陶瓷兩種，其中陶瓷燈頭采用耐高溫線作導線，保障使用效果。

【應用范圍】UV漆干燥、UV膠粘合、表面固化、印刷制版、油墨干燥、光固化、高分子化合物老化、實驗室應用、半導體元件制作等光化學領域

【綜合介紹】

高強度UV燈/碘鎵燈/鐵燈，屬高強度氣體放電燈，選用進口石英玻璃管制成，紫外線透過率極強。高漏磁感應變壓器加起啟動，光譜能量分布以365nm//420nm為中心，有效范圍350nm-450nm，具有極高的功率密度和有效的紫外線波段。強紫外線高壓汞燈輻射，瞬時表面固化，系近幾年迅速發展的一項高新技術。高強度紫外線光固化燈具有瞬時固化、省時省電、節約空間和無污染等特點，特別適用于印刷制版、油墨干燥、光固化、高分子化合物老化、實驗室應用、半導體元件制作等光化學領域。高強度紫外線光固化燈燈頭分為金屬和陶瓷兩種，其中陶瓷燈頭采用耐高溫線作導線，保障使用效果。

【使用說明】

1．該燈需用相應的鎮流器、觸發器或漏磁變壓器方能使用（已配套）。

2．安裝前需用紗布沾取乙醇擦拭燈管表面，以免燈管過早失透。

3．請勿用于高溫、潮濕環境。使用后，放置于陰涼干燥處保存。

4．該燈有紫外線輻射，操作者須佩帶墨鏡，以免灼傷眼球。

5．巨源光電還承接進口設備UV光源及非標光源的制作。

【產品參數】

燈罩尺寸：長17cm*寬12cm*深8cm

電源箱尺寸：長17cm*寬10cm*深8cm

可按照需求，定制各種尺寸燈具

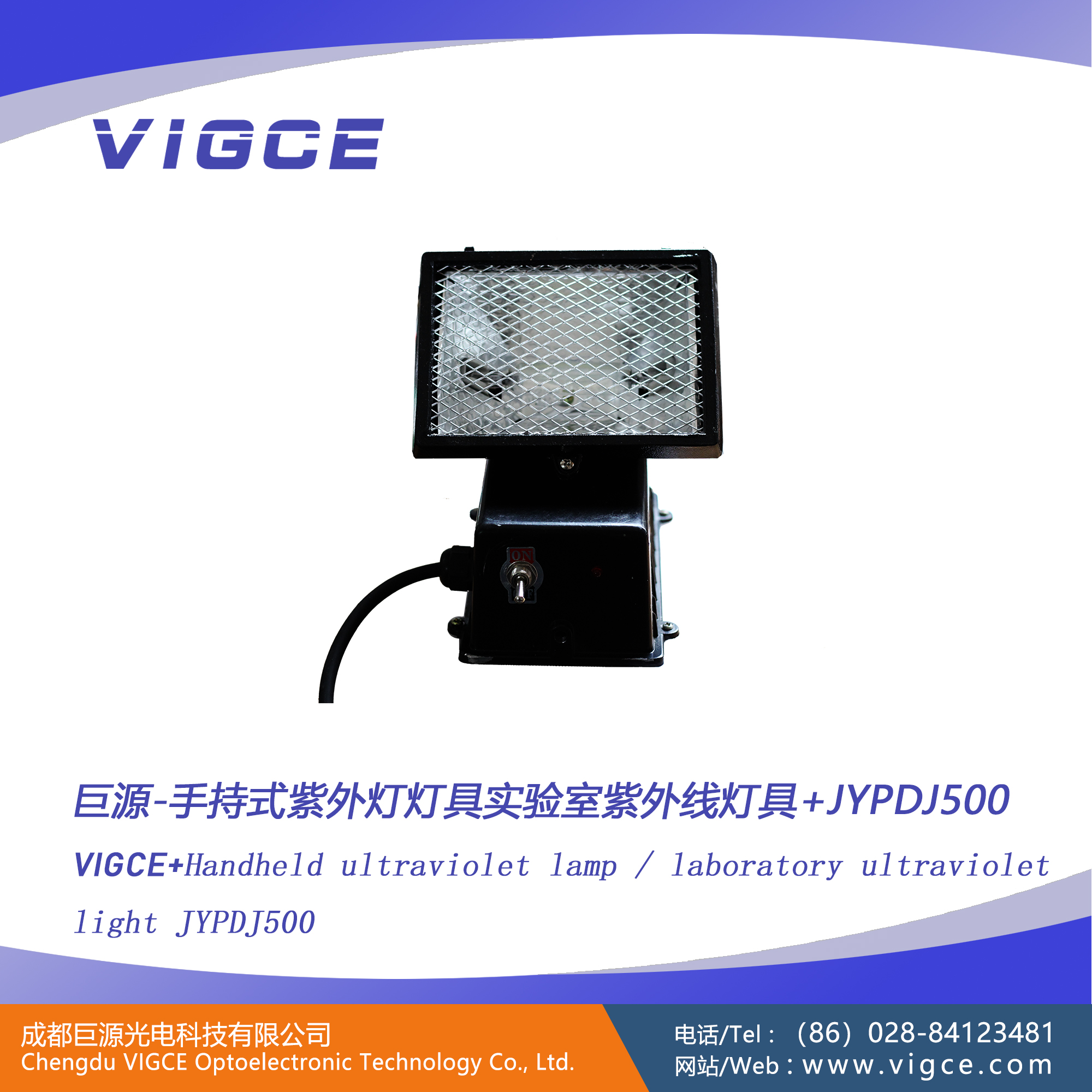

[product name] handheld ultraviolet lamps / laboratory ultraviolet lamps
[product model] JYPDJ500
[product small class] can be replaced by light source. Replaceable types: 500WUV lamp, 500W iodide gallium lamp, 250W iron lamp
[product category] lamp / laboratory lamps
UV light curing, 365nm, 420nm ultraviolet ray, and medium long wave ultraviolet ray
High strength gas discharge lamp
[product characteristics]

1. high strength gas discharge lamp, strong UV output, fast curing speed;
2. made of imported quartz glass tubes, the ultraviolet transmittance is very strong.
3., high magnetic leakage induction transformer is added to start up. The spectral energy distribution is centered at 365nm/420nm, and its effective range is 350nm-450nm. It has high power density and effective ultraviolet band.
4. strong ultraviolet light radiation, instantaneous surface curing;
5. instantaneous curing, saving time and electricity, saving space and pollution-free, etc.
6. hand-held design, small and convenient, can be applied to narrow occasions;
7. the lamp head is divided into two kinds of metal and ceramic, of which the ceramic lamp head adopts the high temperature resistance wire as the wire to guarantee the use effect.

[application] UV paint drying, UV curing, bonding, surface printing, ink drying, curing, aging, polymer applications, semiconductor element fabrication Laboratory of photochemistry

[comprehensive introduction]

High strength UV lamp / iodide lamp / iron lamp is a high strength gas discharge lamp. It is made of imported quartz glass tube with very strong ultraviolet transmission rate. The high leakage magnetic induction transformer is added to start up. The spectral energy distribution is centered at 365nm//420nm, and its effective range is 350nm-450nm. It has high power density and effective ultraviolet band. High pressure ultraviolet mercury lamp radiation, instant surface curing, is a rapid development of a new technology in recent years. High intensity UV curable lamp has the characteristics of instant curing, saving time and electricity, saving space and no pollution. It is especially suitable for printing, plate making, printing ink drying, light curing, polymer aging, laboratory application, semiconductor manufacturing and other fields. The high intensity ultraviolet light curing lamp lamp head is divided into two kinds of metal and ceramic, of which the ceramic lamp head uses the high temperature resistance wire as the wire to guarantee the use effect.

[instructions]

1. the lamp should be used with the corresponding ballast, trigger or magnetic flux leakage transformer.
2. before installation, use gauze to smear the surface of the lamp to wipe the lamp, so as to avoid the premature loss of the lamp.
3. do not use in high temperature, wet environment. After use, keep it in a cool and dry place.
4. the lamp has ultraviolet radiation, and the operator must wear sunglasses to avoid burning the eyeball.
5. giant source optoelectronic also carries on the production of the imported equipment UV light source and the non standard light source.
[product parameters]
Lampshade size: long 17cm* width 12cm* deep 8cm
Power box size: long 17cm* width 10cm* deep 8cm
Various sizes of lamps and lanterns can be customized according to demand
